Stone working CNC router machine for Marble cutting

Stone Machining Milling Shaping Drilling Working Processing CNC Router Engraving Machine

Model: S1532C

This CNC router stone engraving machine is developed specially for hard decorative materials engraving. To combine with diamond cutter and sintered cutter specifically developed for the engraving machine, as the best choice of the individual indoor and outdoor decorations; This CNC stone working machinery is used for hard materials such as granite, natural marble, artificial marble, ceramic tile, sandstone and other decorative materials. This 3 axis stone processing machinery is with better dust-proof and water-proof system. With 300mm gantry height, 1500mm x 3200mm big size CNC granite machine can meet customers’ requirements to engrave on much thicker materials.

CNC Stone Shaping Machine Applications:

Granite, Marble and Ceramic tile craftworks

Whole cabinet door and table

Stele, grave stone, tombstone, Gravestone engraving

Individual indoor and outdoor decorations making

Other stone industry

CNC Stone Milling Machine Features:

1) With dust-proof and water-proof system

2) With 300mm gantry height and 300mm vertical movement

3) The diamond cutter and sintered cutter for hard materials make it easier to engrave vertical letters and pattern in granite.

4) High rigid frame structure can achieve high speed and high accuracy.

5) The precise large power spindle can provide high speed engraving and fine processing.

6) Power-off protective memory function assures restarting work in the same position after power-off.

7) Advanced DSP offline control system can provide better stability.

S1532B Big Size CNC Stone Router Configurations:

1, 6KW water-cooled spindle

2, DSP handle control system

3, Stepper motor and driver

4, 7.5 kw fuling frequency inverter

5, Taiwan Hiwin square guide rail

6, Working area 1500*3200*300mm

7, With oil inject lubrication system

8, T-slot clamp table with thick PVC

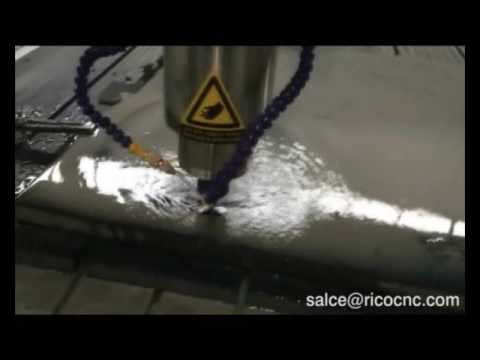

9, Water jet, water pump cooling system

10. Voltage: AC 380V/50-60Hz, single phase

11, Necessary accessaries offered

CNC Stone Router Machine Technical Specifications:

Model	S1532C
Working table size(mm)	1700 X 3750 mm
Max engraving size(mm)	1500 X 3200 mm
Vertical movement	300 mm
Max moving speed(mm/min)	35000 mm/min
Manner of receiving data	USB
Control system	DSP Control
Memory(MB)	256M
Spindle power(KW)	6 KW
Max spindle speed(rpm)	18000 rpm
Cutter Diameter(mm)	1mm – 16mm
Power(KW)	9 KW
Cooling System	Circulation Water
Packing Size	4400 x 2280 x 1800mm
Gross Weight (kg.)	2500 Kg
